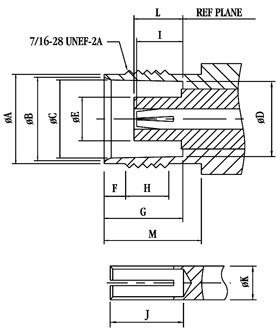

Material
|
|
Body
|
Brass, nickel plated
|
|
Center contact
|
Brass (male)/BeCu or PhBz (female), gold plated
|
|
Insulator
|
Teflon/PP/Delrin
|
|
Crimp ferrule
|
Annealed copper, nickel plated
|
|
Gasket
|
Silicone rubber
|
|
Electrical
|
|
Impedance
|
50 Ohm
|
|
Frequency range
|
0 ~ 11 GHz
|
|
Working voltage
|
500V rms max
RG174, 188, 316 = 250V rms @sea level max
RG178 = 170V rms @sea level max
RG58 = 335V rms @sea level max
|
|
Insulation resistance
|
5000 MOhm min
|
|
Dielectric withstanding voltage
|
1500V rms min
RG174, 188, 316 = 750V rms min
RG178 = 500V rms min
RG58 = 1000V rms min
|
|
Contact resistance
|
Center contact = 1.5 mOhm max
Outer contact = 1.0 mOhm max
|
|
VSWR
|
1.3 max
|
|
Insertion loss
|
0.2 x √(f) GHz dB max @3.0 GHz
|
|
Mechanical
|
|
Mating
|
Screw type coupling mechanism
|
|
Coupling nut retention force
|
100 lbs min
|
|
Coupling proof torque
|
15.0 in/lbs min (for plug only)
|
|
Durability
|
500 matings
|
|
Cable retention force
|
Non-crimp = 40 lbs min
RG174 = 12.1 lbs min
RG178 = 7.3 lbs min
RG58 = 28.7 lbs min
|
|
Environmental
|
|
Corrosion (Sail spray)
|
MIL-STD-202F, Method 101D, Condition B
|
|
Thermal shock
|
MIL-STD-202F, Method 1017G, Condition B
|
|
Vibration
|
MIL-STD-202F, Method 204D, Condition B
|
|
Mechanical shock
|
MIL-STD-202F, Method 213B, Condition A
|
