SMB Series |
|
|
|
|
SMB subminiature coaxial connectors are based on MIL-C-39012.
They are designed for 50 Ohm systems with a working frequency up to 4 GHz.
The snap-on mating design can offer not only a low mating force, but also a fast and reliable connection.
The major application of SMB series connectors are microwave, phone and other telecommunication devices.
|
|
|
|
|
Plug interface
|
Jack interface
|
|
|
|
|
|
Item
|
Plug interface dimensions in mm
|
|
min
|
max
|
|
A
|
-
|
2.06
|
|
B
|
0.18
|
0.94
|
|
C
|
0.18
|
-
|
|
D
|
2.97
|
-
|
|
E
|
3.58
|
-
|
|
F
|
3.58
|
-
|
|
G
|
-
|
1.63
|
|
|
|
Item
|

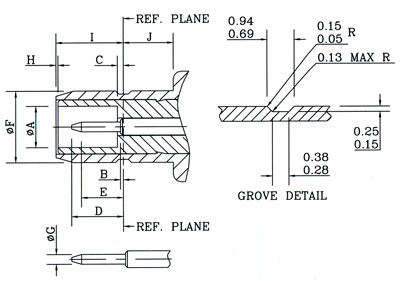

Jack interface dimensions in mm
|
|
min
|
max
|
|
A
|
2.08
|
-
|
|
B
|
-
|
0.18
|
|
C
|
-
|
0.18
|
|
D
|
-
|
2.97
|
|
E
|
1.32
|
-
|
|
F
|
-
|
3.71
|
|
G
|
0.48
|
0.53
|
|
H
|
0.00
|
-
|
|
I
|
3.33
|
3.58
|
|
J
|
1.65
|
-
|
|
|
|
|
|
|
|
Material
|
|
Body
|
Brass, gold or nickel plated
|
|
Center contact
|
Brass (male)/BeCu (female), gold plated
|
|
Insulator
|
Teflon
|
|
Crimp ferrule
|
Annealed copper, gold or nickel plated
|
|
Electrical
|
|
Impedance
|
50 Ohm
|
|
Frequency range
|
0 ~ 4 GHz
|
|
Working voltage
|
RG178,196 = 250V rms @sea level max
RG174, 188, 316 = 335V rms @sea level max
|
|
Insulation resistance
|
1000 MOhm min
|
|
Dielectric withstanding voltage
|
RG178, 196 = 750V rms min
RG174, 188, 316 = 1000V rms min
|
|
Contact resistance
|
Center contact: 6.0 mOhm max
Outer contact: 1.0 mOhm max
|
|
VSWR
|
Straight connector:
RG178,196 = 1.30 + 0.04F (F in GHz)
RG174, 188, 316 = 1.25 + 0.04F (F in GHz)
Right angle connector:
RG178, 196 = 1.45 + 0.06F (F in GHz)
RG174, 188, 316 = 1.35 + 0.04F (F in GHz)
|
|
Insertion loss
|
Straight connector = 0.30dB max @1.5GHz
Right angle connector = 0.6dB max @1.5GHz
|
|
Mechanical
|
|
Engagement force
|
14.0 lbs max
|
|
Disengagement force
|
2.0 ~ 14.0 lbs
|
|
Connector durability
|
500 matings
|
|
Cable retention force
|
RG178 = 7.3 lbs min, RG316 = 12.1 lbs min, RG58 = 28.7 lbs min
|
|
Environmental
|
|
Corrosion (Sail spray)
|
MIL-SID-202F, Method 101D, Condition B
|
|
Thermal shock
|
MIL-STD-202F, Method 1017G, Condition A
|
|
Vibration
|
MIL-STD-202F, Method 204D, Condition B
|
|
Mechanical shock
|
MIL-STD-202F, Method 213B, Condition A
|
|
|
|
|
|
|
