MMCX Series |
|
|
|
|
MMCX micro-miniature connectors are designed with a 50 Ohm characteristic impedance, the working frequency is up to 6 GHz.
The reliable snap-on mating design offers "low RF-leakage".
Also, the small dimensions allow you to use the connectors where space requirements are critical.
The major application for MMCX series connectors are PCMCIA cards & other small hand-held communication devices.
|
|
|
|
|
Plug interface
|
Jack interface
|
|
|
|
|
|
Item
|

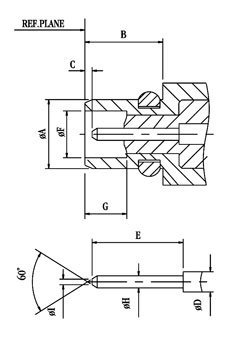

Plug interface dimensions in mm
|
|
min
|
max
|
|
A
|
-
|
2.40
|
|
B
|
2.70
|
-
|
|
C
|
0.00
|
0.25
|
|
D
|
0.70
|
|
E
|
-
|
3.15
|
|
F
|
1.58
|
1.62
|
|
G
|
1.45
|
-
|
|
H
|
0.38
|
0.42
|
|
I
|
-
|
0.20
|
|
|
|
Item
|

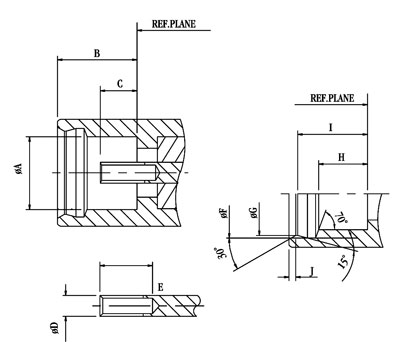

Jack interface dimensions in mm
|
|
min
|
max
|
|
A
|
2.41
|
-
|
|
B
|
2.60
|
-
|
|
C
|
0.90
|
1.20
|
|
D
|
0.70
|
|
E
|
1.40
|
-
|
|
F
|
3.00
|
3.04
|
|
G
|
2.88
|
2.90
|
|
H
|
1.57
|
1.63
|
|
I
|
2.30
|
2.34
|
|
J
|
-
|
0.23
|
|
|
|
|
|
|
|
Material
|
|
Body
|
Brass, gold or nickel plated
|
|
Center contact
|
Brass (male)/BeCu (female), gold plated
|
|
Insulator
|
Teflon
|
|
Crimp ferrule
|
Annealed copper, gold or nickel plated
|
|
Electrical
|
|
Impedance
|
50 Ohm
|
|
Frequency range
|
0 ~ 6 GHz
|
|
Working voltage
|
170V rms max
|
|
Insulation resistance
|
500 MOhm min
|
|
Dielectric withstanding voltage
|
500V rms min
|
|
Contact resistance
|
Center contact: 10.0 mOhm max
Outer contact: 5.0 mOhm max
|
|
VSWR
|
Straight connector: 1.20 max
Right angle connector: 1.25 max
|
|
Mechanical
|
|
Engagement force
|
3.4 lbs max
|
|
Disengagement force
|
1.4 ~ 3.4 lbs
|
|
Connector durability
|
500 matings
|
|
Cable retention force
|
RG178, 196 = 7.3 lbs min
RG174, 188, 316 = 12.1 lbs min
|
|
Environmental
|
|
Corrosion (Sail spray)
|
MIL-STD-202F, Method 101D, Condition A
|
|
Thermal shock
|
MIL-STD-202F, Method 1017G, Condition A
|
|
Vibration
|
MIL-STD-202F, Method 204D, Condition A
|
|
Mechanical shock
|
MIL-STD-202F, Method 213B, Condition A
|
|
|
|
|
|
|
