BNC Series |
|
|
|
|
BNC is the most popular coaxial connector. The special bayonet design ensures the user an easy mating/unmating connection.
The working frequency is up to 4 GHz for 50 Ohm characteristic impedance.
All 50 Ohm BNC connectors (standard) and 75 Ohm (add "-75" after part number) BNC connectors are intermateable.
The application of BNC connectors are wide, such as monitor, LAN, telecommunication devices and test equipment.
|
|
|
|
|

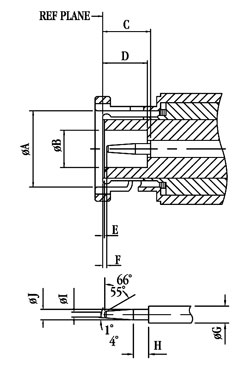

Plug interface
|

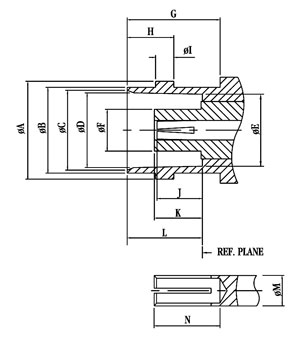

Jack interface
|
|
|
|
|
|
Item
|
Plug interface dimensions in mm
|
|
min
|
max
|
|
A
|
9.78
|
9.91
|
|
B
|
4.83
|
-
|
|
C
|
5.33
|
5.84
|
|
D
|
5.28
|
5.79
|
|
E
|
0.15
|
-
|
|
F
|
0.08
|
-
|
|
G
|
2.06
|
2.21
|
|
H
|
1.98
|
-
|
|
I
|
-
|
0.64
|
|
J
|
1.32
|
1.37
|
|
|
|
Item
|
Jack interface dimensions in mm
|
|
min
|
max
|
|
A
|
10.97
|
11.07
|
|
B
|
9.60
|
9.70
|
|
C
|
8.79
|
9.04
|
|
D
|
8.31
|
8.46
|
|
E
|
8.10
|
8.15
|
|
F
|
-
|
4.72
|
|
G
|
10.52
|
-
|
|
H
|
5.18
|
5.28
|
|
I
|
1.91
|
2.06
|
|
J
|
4.72
|
5.23
|
|
K
|
4.78
|
5.28
|
|
L
|
8.31
|
8.51
|
|
M
|
2.06
|
2.21
|
|
N
|
4.95
|
-
|
|
|
|
|
|
|
|
Material
|
|
Body
|
Brass, nickel plated
|
|
Center contact
|
Brass (male)/BeCu or PhBz (female), gold plated
|
|
Insulator
|
Teflon, P.P., P.E., Delrin
|
|
Crimp ferrule
|
Annealed copper, nickel plated
|
|
Gasket
|
Silicone rubber
|
|
Electrical
|
|
Impedance
|
50 Ohm
|
|
Frequency range
|
0 ~ 40 GHz
|
|
Working voltage
|
500V rms max
RG178 = 170V rms @sea level max
RG58 = 335V rms @sea level max
RG174, 188, 316 = 250V rms @sea level max
|
|
Insulation resistance
|
5000 MOhm min
|
|
Dielectric withstanding voltage
|
1500V rms min
RG178 = 500V rms min
RG58 = 1000V rms min
RG174, 188, 316 = 750V min
|
|
Contact resistance
|
Center contact: 1.5 mOhm max
Outer contact: 1.0 mOhm max
|
|
VSWR
|
1.3 max
|
|
Insertion loss
|
0.2 dB max @3.0 GHz
|
|
Mechanical
|
|
Mating
|
Bayonet coupling
|
|
Coupling nut retention force
|
100 lbs min
|
|
Connector durability
|
500 matings
|
|
Cable retention force
|
RG178 = 17.3 lbs min
RG316 = 12.1 lbs min
RG58 = 28.7 lbs min
|
|
Environmental
|
|
Corrosion (sail spray)
|
MIL-STD-202F, Method 101D, Condition B
|
|
Thermal shock
|
MIL-STD-202F, Method 1017G, Condition A
|
|
Vibration
|
MIL-STD-202F, Method 204D, Condition B
|
|
Mechanical shock
|
MIL-STD-202F, Method 213B, Condition A
|
|
|
|
|
|
|
