MCX Series |
|
|
|
|
MCX miniature connectors are based on the CECC 22220 standard.
They are designed for 50 Ohm systems with working frequency up to 6GHz.
The snap-on mating design offers the user smaller size compared to SMB series (30% space reduction).
MCX connectors are suitable where space, and weight performance are required.
The major application of MCX series connectors are GPS, wireless communication & test devices.
|
|
|
|
|

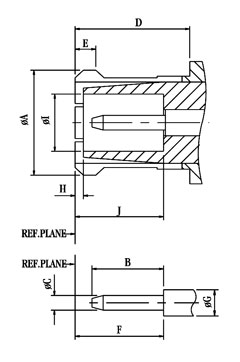

Plug interface
|

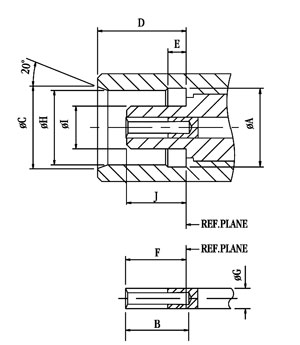

Jack interface
|
|
|
|
|
|
Item
|
Plug interface dimensions in mm
|
|
min
|
max
|
|
A
|
3.72
|
3.80
|
|
B
|
2.49
|
2.59
|
|
C
|
0.48
|
0.53
|
|
D
|
4.15
|
-
|
|
E
|
0.70
|
0.75
|
|
F
|
2.80
|
3.20
|
|
G
|
0.95
|
|
H
|
-
|
0.30
|
|
I
|
2.00
|
2.07
|
|
J
|
2.80
|
3.20
|
|
|
|
Item
|
Jack interface dimensions in mm
|
|
min
|
max
|
|
A
|
3.60
|
3.70
|
|
B
|
2.80
|
-
|
|
C
|
3.75
|
3.85
|
|
D
|
4.00
|
4.12
|
|
E
|
0.75
|
0.85
|
|
F
|
2.30
|
2.80
|
|
G
|
0.95
|
|
H
|
3.42
|
3.48
|
|
I
|
1.80
|
1.98
|
|
J
|
2.60
|
2.80
|
|
|
|
|
|
|
|
Material
|
|
Body
|
Brass, gold or nickel plated
|
|
Center contact
|
Brass (male)/BeCu (female), gold plated
|
|
Insulator
|
Teflon
|
|
Crimp ferrule
|
Annealed copper, gold or nickel plated
|
|
Electrical
|
|
Impedance
|
50 Ohm
|
|
Frequency range
|
0 to 6 GHz
|
|
Working voltage
|
RG178, 196 = 250V rms @sea level max
RG174, 188, 316 = 335V rms @sea level max
|
|
Insulation resistance
|
1000 MOhm min
|
|
Dielectric withstanding voltage
|
RG178, 196 = 750V rms min
RG174, 188, 316 = 1000V rms min
|
|
Contact resistance
|
Center contact: 5.0 mOhm max
Outer contact: 1.0 mOhm max
|
|
VSWR
|
Straight connector:
RG178, 196 = 1.07+0.06F (F in GHz)
RG174, 188, 316 = 1.07+0.04F (F in GHz)
Right angle connector:
RG178, 196 = 1.17+0.06F (F in GHz)
RG174, 188, 316 = 1.13+0.04F F in GHz)
|
|
Mechanical
|
|
Engagement force
|
5.6 lbs max
|
|
Disengagement force
|
1.8 ~ 4.5 lbs
|
|
Connector durability
|
500 matings
|
|
Cable retention force
|
RG178 = 7.3 lbs min
RG316 = 12.1 lbs min
|
|
Environmental
|
|
Corrosion (Salt spray)
|
MIL-STD-202F, Method 101D, Condition A
|
|
Thermal shock
|
MIL-STD-202F, Method 1017G, Condition A
|
|
Vibration
|
MIL-STD-202F, Method 204D, Condition A
|
|
Mechanical shock
|
MIL-STD-202F, Method 213B, Condition A
|
|
|
|
|
|
|
