SMA Series |
|
|
|
|
Direct solder type for semi-rigid cable
|
|
|
|
|

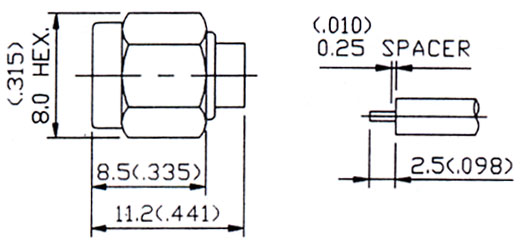

Plug, straight, with center contact
|
Material
|
Body
|
:Brass (see table for plating)
|
|
Insulator
|
:Teflon
|
|
Contact
|
:Brass, gold plated
|
|
|
Part number
|
Cable
|
Plating
|
|
300/242C1120400
|
RG402/ U
|
Gold
|
|
300/242C1120401
|
Nickel
|
|
300/242C1120410
|
RG405/ U
|
Gold
|
|
300/242C1120411
|
Nickel
|
|
|

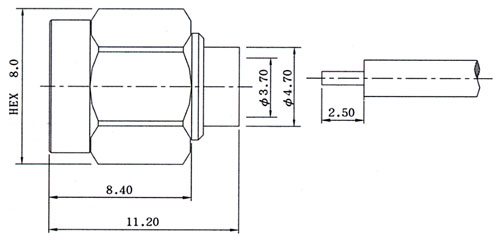

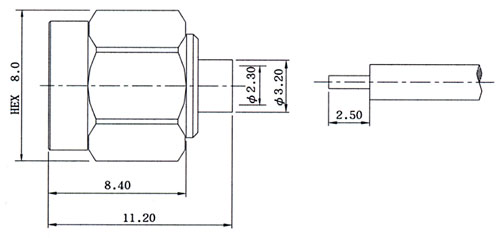

Plug, straight, without center contact
|
Material
|
Body
|
:Brass (see table for plating)
|
|
Insulator
|
:Teflon
|
|
|
|

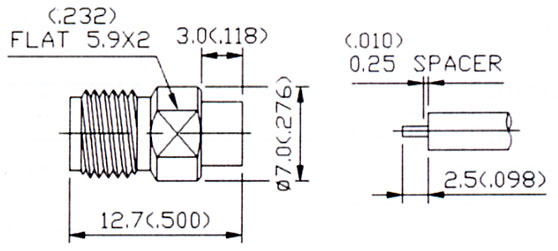

Jack, straight
|
Material
|
Body
|
:Brass (see table for plating)
|
|
Insulator
|
:Teflon
|
|
Contact
|
:BeCu, gold plated
|
|
|
Part number
|
Cable
|
Plating
|
|
300/242C1120600
|
RG402/ U
|
Gold
|
|
300/242C1120601
|
Nickel
|
|
300/242C1120610
|
RG405/ U
|
Gold
|
|
300/242C1120611
|
Nickel
|
|
|

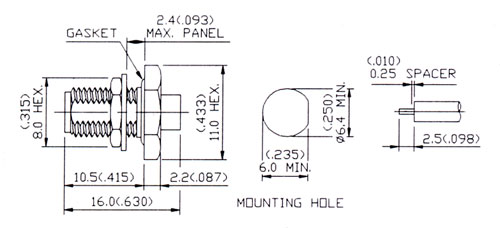

Jack, straight, bulkhead
|
Material
|
Body
|
:Brass (see table for plating)
|
|
Insulator
|
:Teflon
|
|
Contact
|
:BeCu, gold plated
|
|
|
Part number
|
Cable
|
Plating
|
|
300/242C1120700
|
RG402/ U
|
Gold
|
|
300/242C1120701
|
Nickel
|
|
300/242C1120710
|
RG405/ U
|
Gold
|
|
300/242C1120711
|
Nickel
|
|
|
|
|
|
|
|
