SMA Series

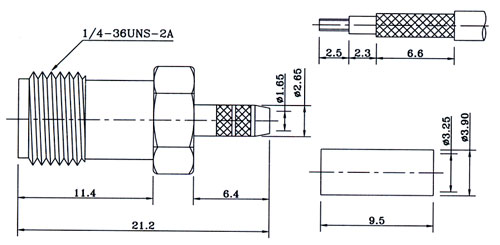

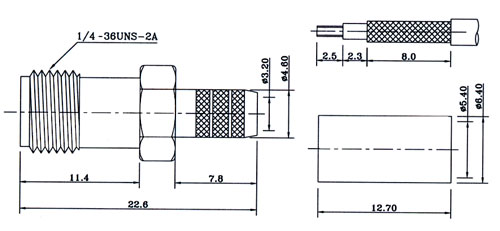

Jack,  straight, crimp type

Material

Body	: Brass (see table for plating)
Insulator	: Teflon
Contact	: Brass, gold plated

Part number Cable Plating 300/242C1340200 RG174, 188, 316/U Gold 300/242C1340201 Nickel 300/242C1340210 RG58, 141/U Gold 300/242C1340211 Nickel

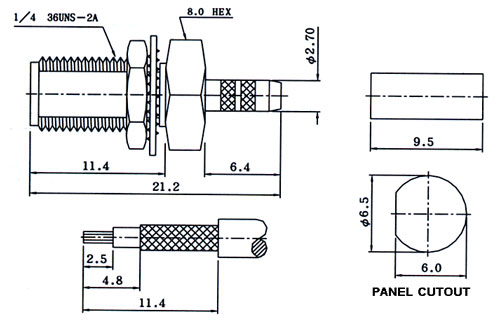

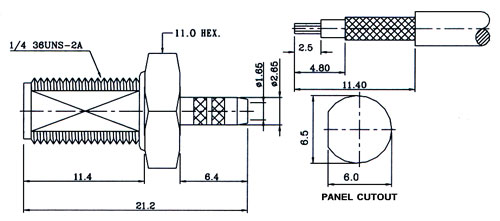

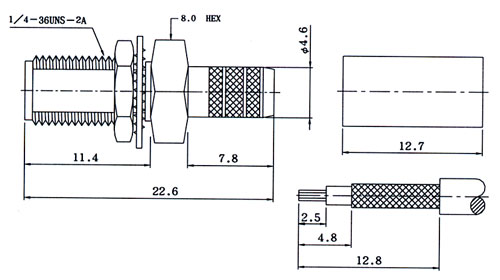

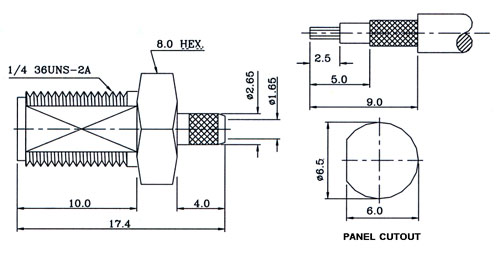

Jack,  bulkhead, straight, crimp type

Material

Body	: Brass (see table for plating)
Insulator	: Teflon
Contact	: Brass, gold plated

Part number Cable Plating 300/242C1340220 RG174, 188, 316/U Gold 300/242C1340221 Nickel 300/242C1340240 Gold 300/242C1340241 Nickel 300/242C1340250 Gold 300/242C1340251 Nickel 300/242C1340230 RG58, 141/U Gold 300/242C1340231 Nickel 300/242C1340260 †Ø1.13 Gold 300/242C1340261 Nickel

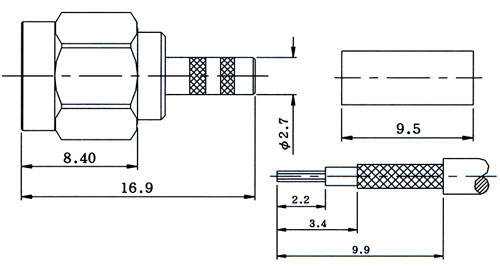

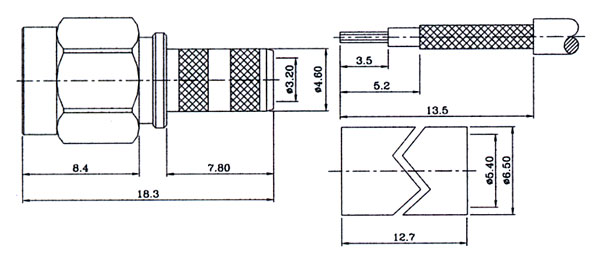

Plug,  straight, crimp type

Material

Body	: Brass (see table for plating)
Insulator	: Teflon
Contact	: Brass, gold plated

Part number Cable Plating 300/242C1340270 RG174, 188, 316/U Gold 300/242C1340271 Nickel 300/242C1340280 RG58, 141/U Gold 300/242C1340281 Nickel

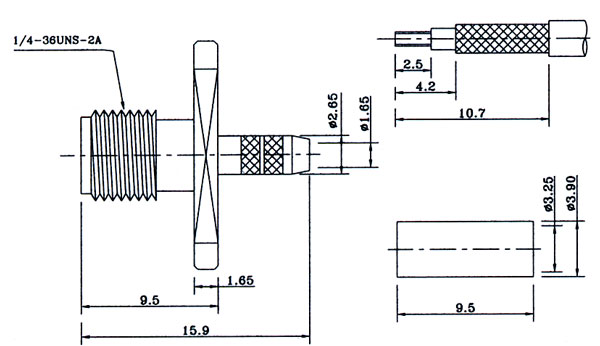

Jack,  2-hole flange, crimp type

Material

Body	: Brass (see table for plating)
Insulator	: Teflon
Contact	: BeCu, gold plated

Part number Cable Plating 300/242C1340290 RG174, 188, 316/U Gold 300/242C1340291 Nickel
