SMA Series |
|
|
|
|
Crimp type for flexible cable
|
|
|
|
|

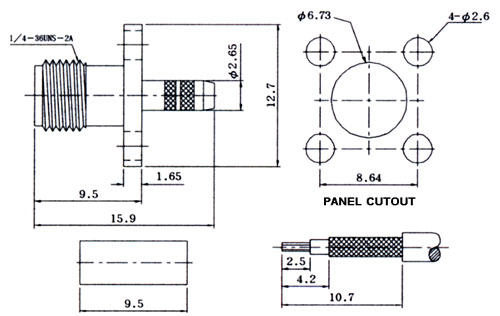

Jack, flange mount
|
Material
|
Body
|
: Brass (see table for plating)
|
|
Insulator
|
: Teflon
|
|
Contact
|
: BeCu, gold plated
|
|
|
Part number
|
Cable
|
Plating
|
|
300/242C1120200
|
RG174, 188, 316/U
|
Gold
|
|
300/242C1120201
|
Nickel
|
|
|
Jack, bulkhead
|
Material
|
Body
|
: Brass (see table for plating)
|
|
Insulator
|
: Teflon
|
|
Contact
|
: BeCu, gold plated
|
|
|
|
Jack, bulkhead
|
Material
|
Body
|
: Brass (see table for plating)
|
|
Insulator
|
: Teflon
|
|
Contact
|
: BeCu, gold plated
|
|
|
|
Jack, bulkhead
|
Material
|
Body
|
: Brass (see table for plating)
|
|
Insulator
|
: Teflon
|
|
Contact
|
: BeCu, gold plated
|
|
|
Part number
|
Cable
|
Plating
|
|
300/242C1120300
|
RG58, 58A, 141A
|
Gold
|
|
300/242C1120301
|
Nickel
|
|
300/242C1120310
|
RG174, 188A, 316
|
Gold
|
|
300/242C1120311
|
Nickel
|
|
300/242C1120320
|
RG142U
|
Gold
|
|
300/242C1120321
|
Nickel
|
|
|
|
|
|
|
|
