USB & Firewire Connectors

USB plug, A-type, long body, solder, cable mount

HOUSING

SPECIFICATIONS:

RATING:

1A @ 30V AC R.M.S.

INSULATION RESISTANCE:

1000 MOhm min

CONTACT RESISTANCE:

30 mOhm max

DIELECTRIC WITHSTANDING VOLTAGE:

750V AC

TEMPERATURE RATING:

-55°C TO +105°C

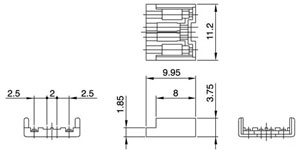

COVER

MATERIAL

HOUSING:

PBT &HIGH TEMPERATURE POLYESTER + GLASS  FIBER, UL 94V-0

CONTACTS:

BRASS

SHELL:

SPCC

COLOR:

BLACK, IVORY, WHITE

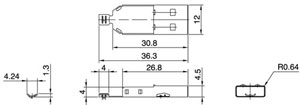

FRONT SHELL



REAR SHELL

Part number: 300/272PUA03-

Selection explanation:

Contact plating:

F - gold flash over 50u" nickel
G - gold flash over 30u" Pd-Ni over 50u" nickel
J - 30u" gold over 50u" nickel

Front shell option:

T - tin plated
N - nickel plated

Insulator
color
option:

B - black
I - ivory
W - frost white
