SMA Series

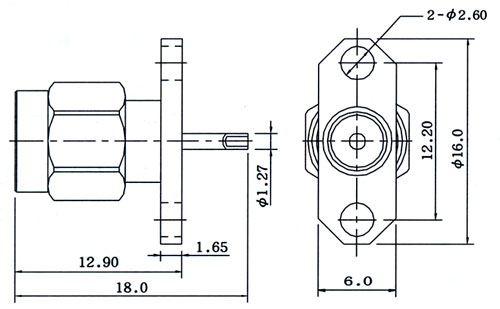

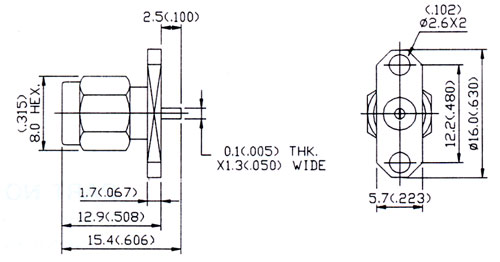

Plug,  2-hole flange, solder
and tab contact

Material

Body	:Brass (see table for plating)
Insulator	:Teflon
Contact	:Brass, gold plated

Part number Contact type Plating 300/242C1321600 Solder Gold 300/242C1321601 Nickel 300/242C1321400 Tab Gold 300/242C1321401 Nickel

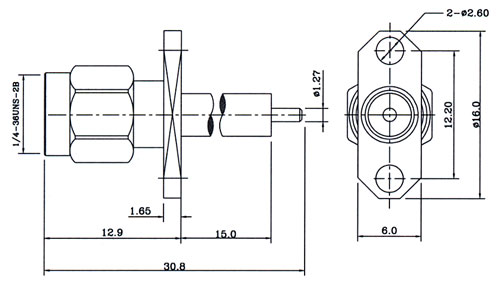

Plug,  2-hole flange, exposed insulator

Material

Body	:Brass (see table for plating)
Insulator	:Teflon
Contact	:Brass, gold plated

Part number Plating 300/242C1321700 Gold 300/242C1321701 Nickel

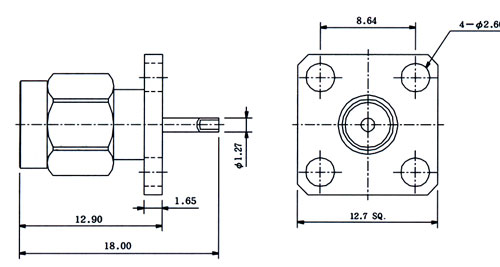

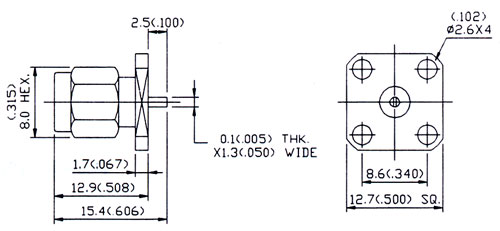

Plug,  4-hole flange, solder
and tab contact

Material

Body	:Brass (see table for plating)
Insulator	:Teflon
Contact	:Brass, gold plated

Part number Contact type Plating 300/242C1321800 Solder Gold 300/242C1321801 Nickel 300/242C1322000 Tab Gold 300/242C1322001 Nickel

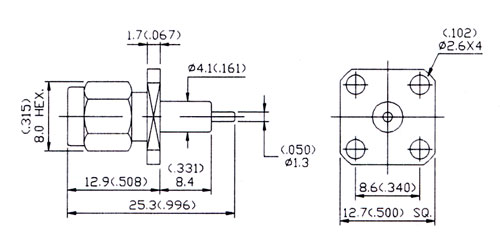

Plug, receptacle

Material

Body	:Brass (see table for plating)
Insulator	:Teflon
Contact	:Brass, gold plated

Part number Plating 300/242C1321900 Gold 300/242C1321901 Nickel
